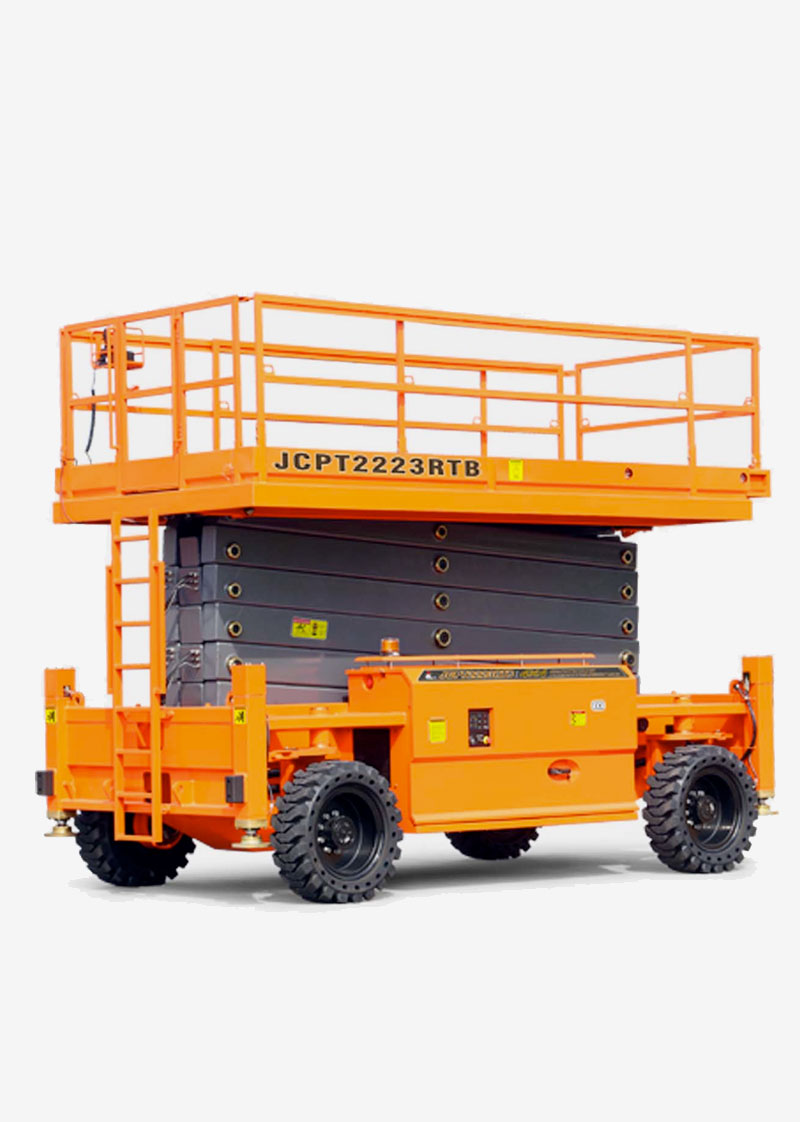

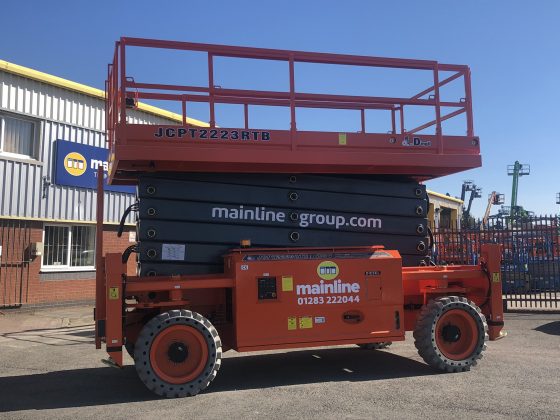

Dingli 2223RTB | 22m Scissor Lift
The Dingli JCPT 2223RTB is ideal for challenging high-reach outdoor work. Featuring a working height of up to 22m, this Dingli machine boasts an ample platform size of 4.59m x 2.25m and a safe working load capacity of up to 750kg with room for 4 occupants, making it a perfect choice for piping, cladding, brickwork, ductwork and electrical installation jobs. This 22m diesel scissor lift has a 2.7m platform extension, allowing plenty of room for both workers and for bulky materials.
Interested in hiring this product?
Mainline Hire
Based on 16 Google Reviews
Specifications
Download Data sheet
Max Working Height |
22m |
Max Platform Height |
20m |
Overall Width |
2.46m |
Overall Length |
4.95m |
Stowed Height |
3m |
Platform Capacity |
750kg |
Gross Machine Weight |
13000kg |
Stowed Gradeability |
30% |
Specifications may be subject to change – clarification should be sought at point of hire.
Features
-
Tilt sensor
-
Non-marking tyres
-
Proportional controls
-
Four wheel drive (4WD)
-
Onboard diagnostics system
-
Generous 2.7m platform extension
-
750kg SWL
-
Drives at full height
-
Self-lock gate on platform
-
Four wheel steering (4WS)
-
Automatic levelling outriggers
