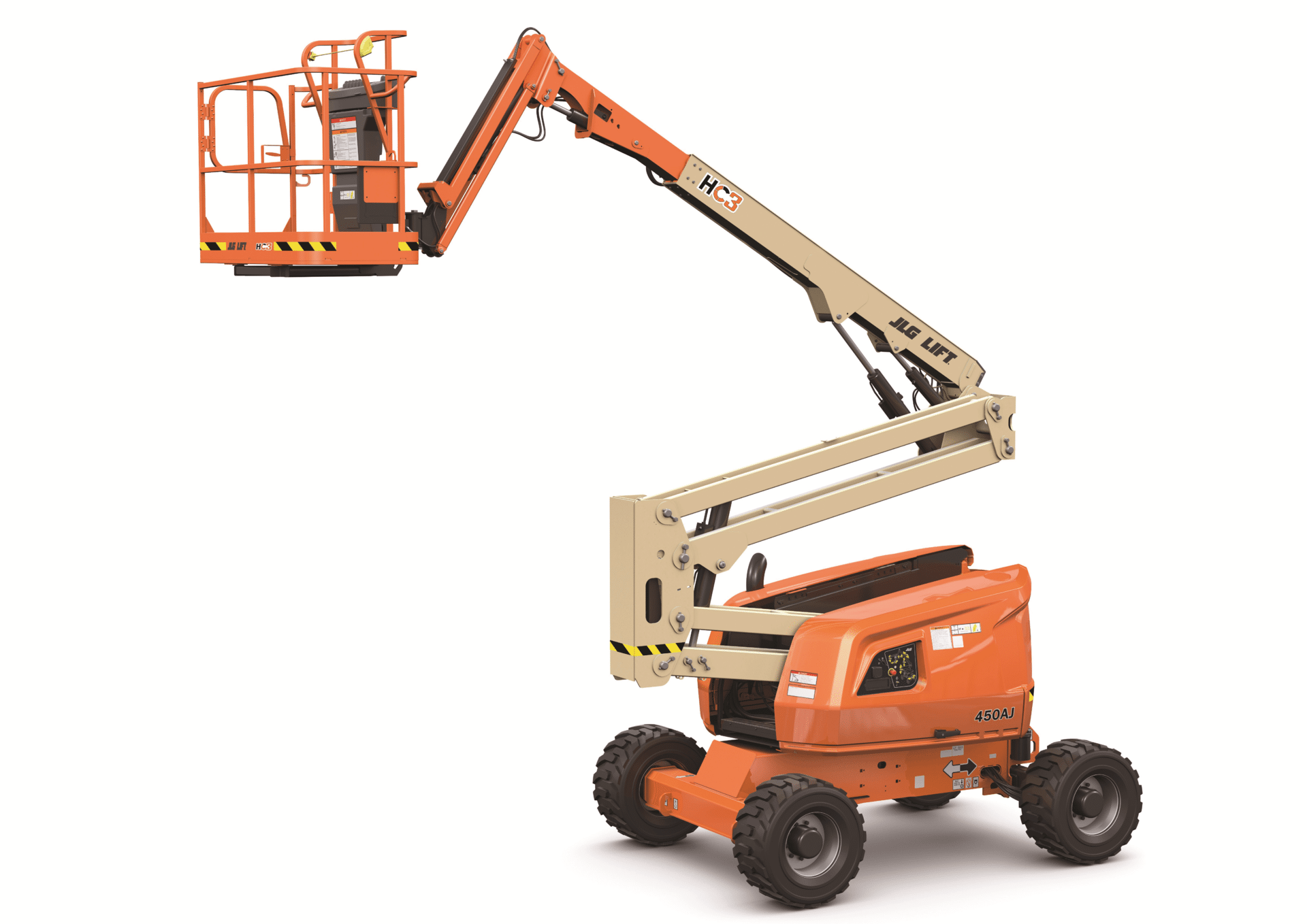

The JLG 450AJ HC3 is a high-capacity articulating boom lift designed for enhanced productivity and flexibility at height. With three working zones and the ability to support up to three workers and their tools, it’s ideal for demanding job sites. Its zero calibration automatic load sensing system eliminates the need for external weights, streamlining operation.
| JLG 450 AJ HC3 | |
|---|---|
| Max Working Height | 15.72m |
| Max Platform Height | 13.72m |
| Outreach | 7.62m |
| Overall Width | 2.35m |
| Platform Capacity | 454kg |
| Gross Machine Weight | 7507kg |
| Stowed Gradeability | 45% |
Specifications may be subject to change – clarification should be sought at point of hire
| Product Features | |
|---|---|
| › Articulating jib | › 180° Hydraulic platform rotator |
| › 5° Tilt Alarm / indicator light | › Swing out engine module |
| › 12V-DC Auxiliary power | › Hydrostatic drive |
| › Operator tool tray | › Side entry to platform with inward swinging self-closing gate |
| › 110V-AC Receptacle on the platform | › Rim protector lug tread tyres |
| › Gull-wing turntable hoods | › Hour-meter |
| › Lifting / tie down lugs | › Horn & motion alarm |
The Manitou 160ATJ articulated platform boom is extremely well suited to work outside on uneven ground. The superior weight capacity, up-and-over clearance and reach allows you to work a large area with ease. The engines hydraulic technology means the machine is quiet and fuel consumption is reduced.
Other key advantages include rough terrain performance, comfort, efficiency, and user-friendly controls. The 160ATJ boom lift offers two heavy duty axles, four-wheel drive, four-wheel steer and high ground clearance.
The AWP14-1000 offers a reach of up to 14 metres, a height that would normally require a larger machine. Its platform has a safe working load of 135kg, easily enough for an engineer and a sizeable tool box
Whether you’re working on slab or off, over rough terrain or smooth, the JLG 800AJ lets you reach higher and get to work faster. The exclusive QuikStik® boom takes you from the ground to 24.38m in less than 50 seconds, giving you a working height of over 27 metres. Plus with the industry’s best reach envelope – 9.75m of up and over and up to 15.8m of outreach – there’s no obstacle you can’t handle.
The Dingli AMWP8100 is a vertical platform with a capacity of 200kg and a working height of up to 11.2m.
It’s ideal for maintenance projects inside due to it’s tight turning radius and non marking tyre, but also great for outdoor use as it features automatic pothole protection.
It’s compact dimensions allow it to pass easily through doors and narrow spaces, it also offers a 3m horizontal outreach and the turret can rotate around 345⁰.
