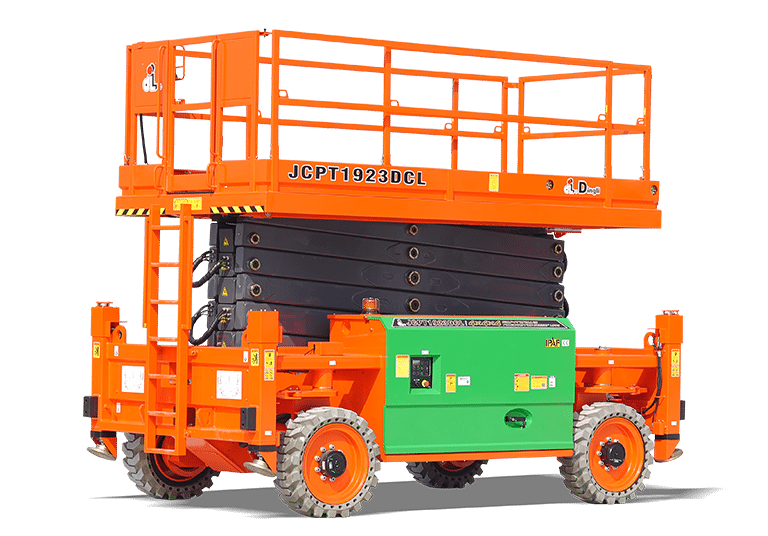

The Dinli 1923 DCL is an advanced electric rough terrain scissor lift, designed for high performance in demanding environments. Equipped with a 48V/450Ah high-capacity battery pack, it delivers long endurance, zero emissions, and quiet operation, making it ideal for environmentally sensitive job sites. With a 680kg safe working load and the ability to be driven at full height, it maximises productivity. Four-wheel drive and steering, along with automatic leveling, ensure superior rough-terrain performance. The one-key extension large deck provides flexibility, allowing operation at any extension point. Built for power, efficiency, and sustainability, the 1923 DCL is the perfect solution for tough outdoor tasks.
| Dingli JCPT 1923 DCL | |
|---|---|
| Max Working Height | 19m |
| Max Platform Height | 17m |
| Overall Width | 2.29m |
| Overall Length | 4.46m |
| Overall Height | 3.6m |
| Platform Capacity | 680kg |
| Gross Machine Weight | 10870kg |
| Stowed Gradeability | 40% |
Specifications may be subject to change – clarification should be sought at point of hire
| Product Features | |
|---|---|
| › Proportional Joystick Controls | › Self-Locking Gates |
| › Charging Indicator | › Drivable At Full Height |
| › Four-Wheel Drive | › Four-Wheel Steering |
| › Four-Wheel Braking | › Self-Weight Lowering System |
| › Platform Load Sense System | › Tubing Explosion-Proof System |
| › Onboard Fault Diagnostic System | › Tilt Alarm |
| › Motion Alarm | › Horn |
| › Hour Meter | › Charging Protection System |
| › Foldable Guard Rails | |
The Dinli 1923 DCL is an advanced electric rough terrain scissor lift, designed for high performance in demanding environments. Equipped with a 48V/450Ah high-capacity battery pack, it delivers long endurance, zero emissions, and quiet operation, making it ideal for environmentally sensitive job sites. With a 680kg safe working load and the ability to be driven at full height, it maximises productivity. Four-wheel drive and steering, along with automatic leveling, ensure superior rough-terrain performance. The one-key extension large deck provides flexibility, allowing operation at any extension point. Built for power, efficiency, and sustainability, the 1923 DCL is the perfect solution for tough outdoor tasks.
