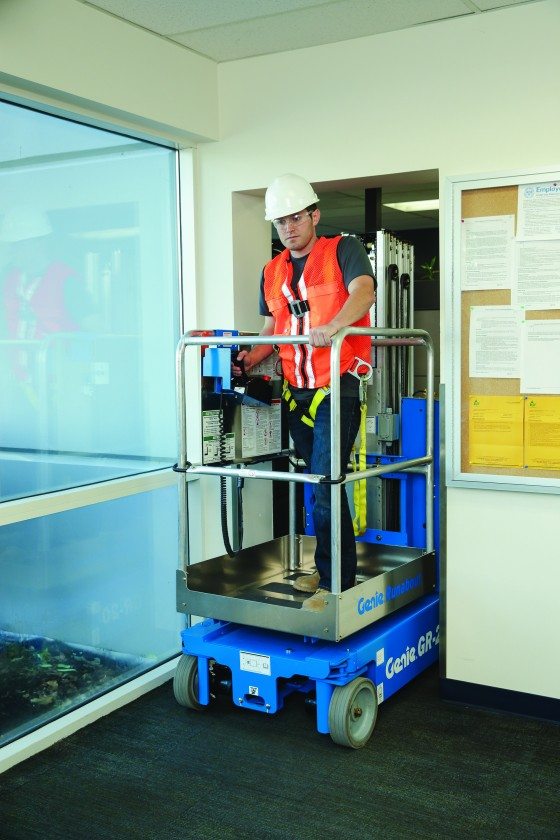

The Genie GR 20 proves a popular option for mechanical and electrical contractors working in warehouses and offices where the workspace is tight or where multiple contractors are working in one small area. Used regularly where there is insufficient space for scissor lifts, this machine provides great versatility for maintenance, repairs, and new M&E installations.
| Genie GR20 | |
|---|---|
| Max Working Height | 8.07m |
| Max Platform Height | 6.07m |
| Overall Width | 0.8m |
| Stowed Length | 1.35m |
| Stowed Height | 1.98m |
| Platform Capacity | 159kg |
| Gross Machine Weight | 1112kg |
| Stowed Gradeability | 30% |
Specifications may be subject to change – clarification should be sought at point of hire
| Product Features | |
|---|---|
| › Compact base | › Pothole protection |
| › Descent and tilt alarm | › Non-marking solid tyres |
| › Zero inside turning radius | › Auxiliary platform lowering |
| › On-board diagnostic system | › Large forklift pockets access |
| › Standard platform with sliding mid-rail | › Hinged rear ABS covers for easy access to all major electrical and hydraulic components |
| › Dual wheel brakes | › AC power to platform |
| › Battery charge indicator | › Hydraulic brake release |
| › Low platform entry height | › Patented rigid mast system |
| › Tie-down attachment points | › Overhead crane attachment point |
| › Overhead crane attachment point | |
GENIE GR20 ARE A NEW GENERATION IN PERSONNEL LIFTS

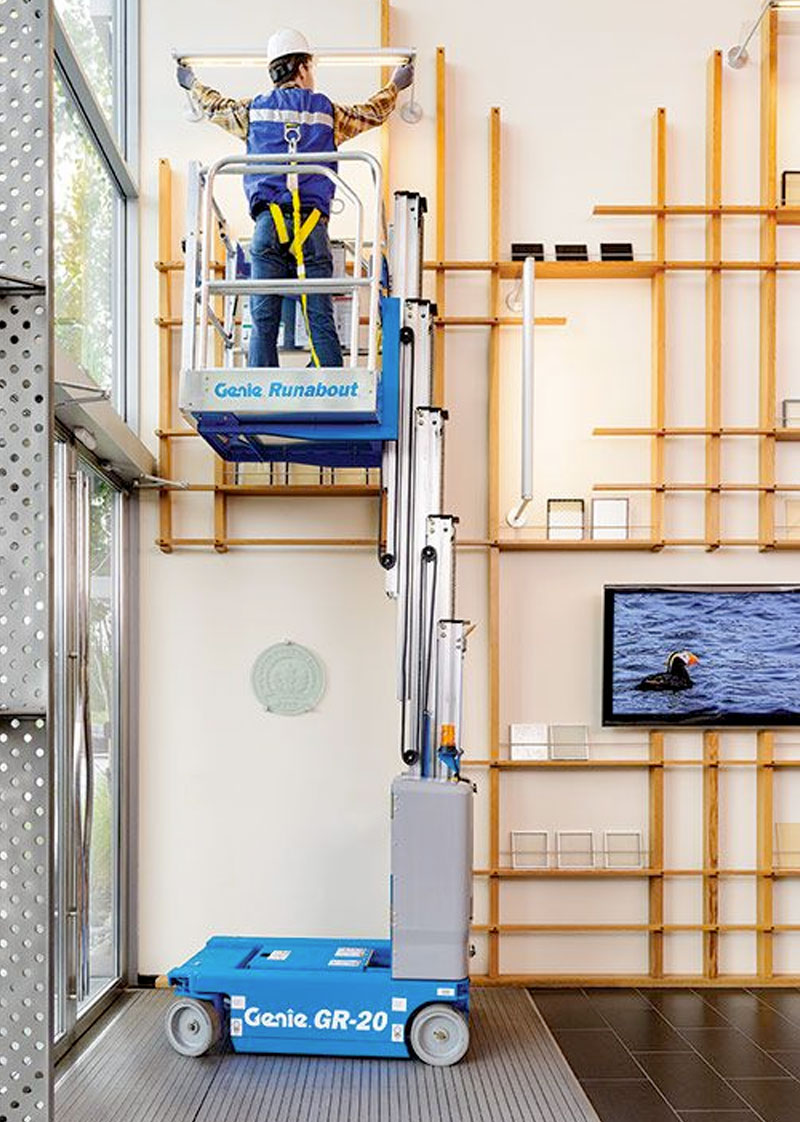

As one of the UK’s leading providers of powered access solutions, Mainline is proud to stock the Genie GR range of latest-generation personnel lifts. Genie’s GR series of personnel lifts have been designed to tackle a series of common operation issues which can hinder productivity. With an 8.07m working height, the Genie GR20 provides a fantastic access solution for innumerable situations.
These 8.07m powered personnel lifts are ideal for warehousing, stock-picking, inventory management, and general maintenance. Designed for manoeuvrability, the Genie GR20’s compact chassis fits easily through standard doorways, down hallways, and even in most lifts.
The Genie GR 20 proves a popular option for mechanical and electrical contractors working in warehouses and offices where the workspace is tight or where multiple contractors are working in one small area. Used regularly where there is insufficient space for scissor lifts, this machine provides great versatility for maintenance, repairs, and new M&E installations.
This machine’s extension deck makes it ideal for working in car plants and factories: The reduced frame means this machine is small enough to get between machines and production lines, whereas the extension deck can slide out and work over the top of them.
The Genie GR20 personnel lift has a working height of 8.07m and a 0.89 x 0.75m platform size plus a 0.51m deck extension, accommodating a 159 kg SWL.
A fantastic feature on this machine is its zero-degree turning radius. This machine’s front wheels can be positioned at a 90-degree angle, allowing it to turn tight corners. As a machine regularly used for indoor maintenance, this is a truly useful feature.
This machine offers extraordinary jobsite performance thanks to its rugged build, which takes into account the harsh environment of many work sites.
The steel tube-in-tube mast section has an inverted build, protecting the moving sections that would usually be exposed from accumulating debris. This section is also free of cables and chains, further simplifying maintenance.
As well as including non-marking tyres as standard, the Genie GR20 features a 0.51 m ”floating” extension deck. This floating deck is designed to avoid friction or jamming of the two decks due to trapped debris or other obstructions, facilitating operation and extending the machine’s working life.
Other great features of this powered personnel lift include Smart-Link control with onboard diagnostics which identifies system faults and displays them in writing, saving time spent trying to look up error codes; greater accessibility and simplified design using parts compatible with Genie’s scissor lift range make servicing and maintenance as hassle-free as possible.
Few personnel lifts can boast the practicality and great design of the Genie GR range.
If you would like more information on Genie GR20 powered personnel lift hire, or on any of our machines, get in touch with Mainline today.
Our machines are available for delivery nationwide, and our fleet is regularly serviced and maintained by our team of CAP-trained engineers.
The Genie GR20 spec is available for download below. For more information on industry-leading powered access hire, contact Mainline here!
