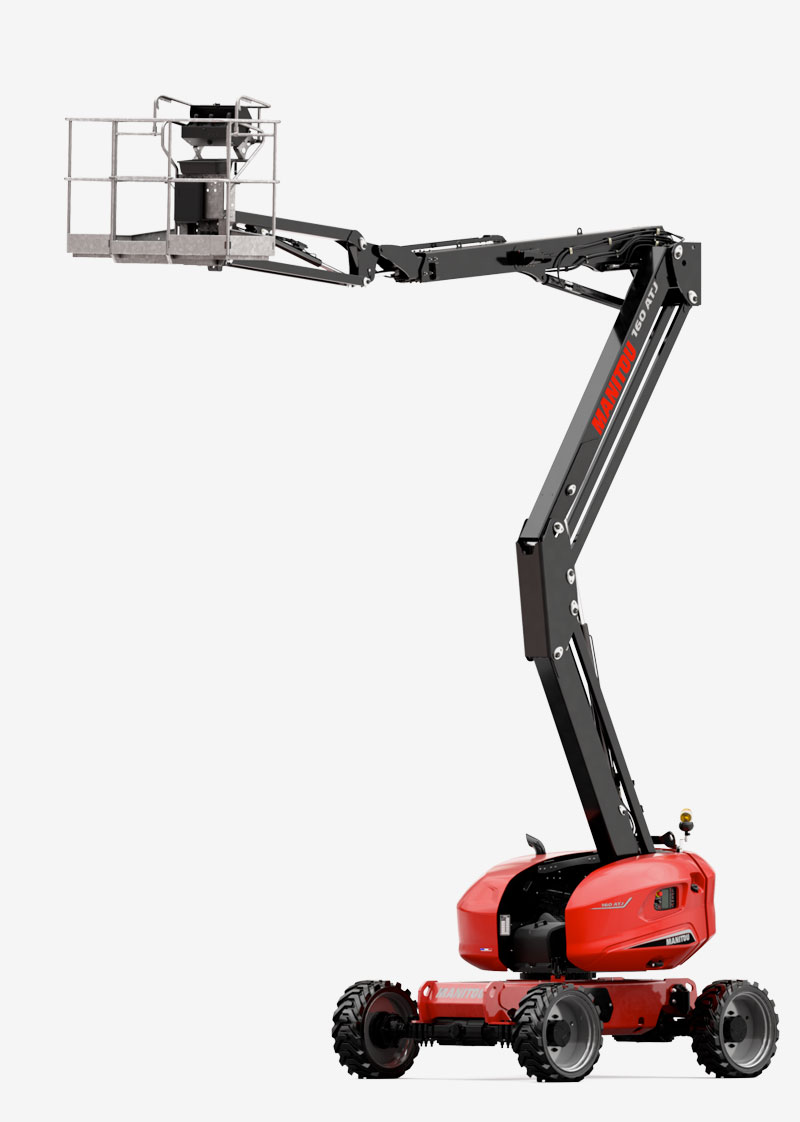

Manitou 160 ATJ | 14m Articulated Boom Lift

The Manitou 160ATJ articulated platform boom is extremely well suited to work outside on uneven ground.  The superior weight capacity, up-and-over clearance and reach allows you to work a large area with ease.  The engines hydraulic technology means the machine is quiet and fuel consumption is reduced. Other key advantages include rough terrain performance, comfort, efficiency, and user-friendly controls. The 160ATJ boom lift offers two heavy duty axles, four-wheel drive, four-wheel steer and high ground clearance.

Interested in hiring this product?

Mainline Hire

4.2

Based on 15 Google Reviews

Specifications

Download Data sheet
Max Working Height

16.25m

Max Platform Height

14.25m

Outreach

9.1m

Overall Width

2.3m

Stowed Length

4.5m

Stowed Height

2.37m

Platform Capacity

230kg

Gross Machine Weight

7450kg

Stowed Gradeability

40%

Specifications may be subject to change – clarification should be sought at point of hire.

Features

  • 4 simultaneous movements

  • Four-wheel steer

  • Proportional controls

  • Differential lock

  • Diagnostic tools

  • Horn

  • Slope and overload alarm in the basket

  • Lifting brackets

  • 230V auxiliary power cable

  • Four-wheel drive (4WD)

  • Crab steer

  • Foam-filled tyres

  • Limited front axle slip

  • Hour-meter

  • Rotating beacon

  • Overslope unlocking

  • Safety electric pump
