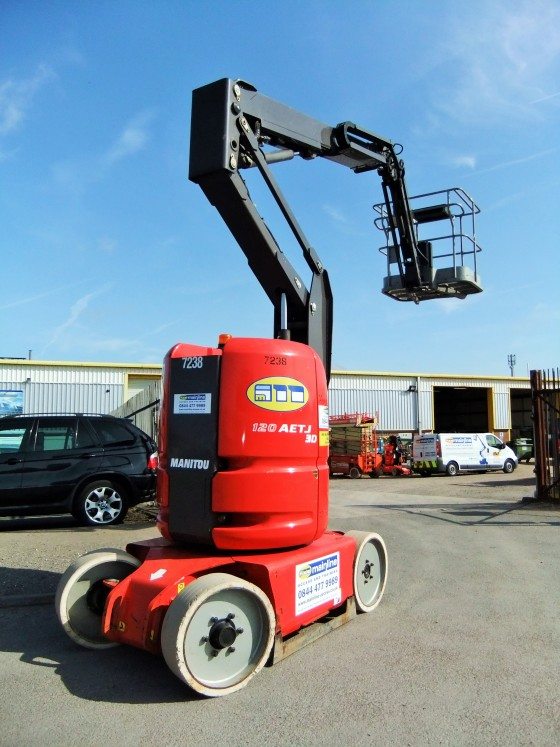

The Manitou 120 AETJ is a compact, light and manoeuvrable machine with an exceptional outreach. The combination of this machine’s outreach with the 4.77m up and over clearance and its compact dimensions means that it is extremely well suited to industrial production plants as is is able to circulate between production lines, working over machinery and conveyor belts, allowing access to machine parts and ceiling installations which would be extremely difficult to reach by any other means.
| Manitou 120 AETJ | |
|---|---|
| Max Working Height | 11.95m |
| Max Platform Height | 9.95m |
| Outreach | 7m |
| Overall Width | 1.2m |
| Stowed Length | 5.48m |
| Stowed Height | 1.99m |
| Platform Capacity | 200kg |
| Gross Machine Weight | 6550kg |
| Stowed Gradeability | 25% |
Specifications may be subject to change – clarification should be sought at point of hire
| Product Features | |
|---|---|
| › Hour-meter | › Lifting brackets |
| › Negative brakes | › 220V predisposal |
| › Safety manual pump | › Dual electrical motors |
| › Electrical battery traction | › Diagnostic help integrated |
| › 3D Jib rotation | › Anti-roll system |
| › Voltage indicator | › Integrated charger |
| › Bus CAN technology | › Basket with mesh floor |
| › Warning buzzer in basket | › Rubber and non-marking tyres |
Manitou 120 AETJ HIRE AVAILABLE WITH MAINLINE!
Mainline is an industry leading provider of electric and hybrid MEWPs, providing low emission powered access solutions for projects in emission sensitive areas, for indoor work and for work in mixed indoor/outdoor environments.
Our electric boom lift hire services include Manitou 120 AETJ 12m electric articulated boom lift hire.
The Manitou 120 AETJ is a compact, light and manoeuvrable machine with an exceptional outreach. The combination of this machine’s outreach with the 4.77m up and over clearance and its compact dimensions means that it is extremely well suited to industrial production plants as is is able to circulate between production lines, working over machinery and conveyor belts, allowing access to machine parts and ceiling installations which would be extremely difficult to reach by any other means.
The Manitou 120 AETJ boasts a rugged construction with rubber, non-marking tyres, 3D jib rotation, an anti-roll system and dual electric motors, adapting it to innumerable types of handling and maintenance operations in extremely difficult to reach places, both indoors and outdoors.
These machines provide fantastic ground clearance and come as standard with a handy pothole protection system for working on rough outdoor terrain. The Manitou 120 AETJs’ compact dimensions and manoeuvrability suit them perfectly to working in narrow indoor spaces such as warehouse aisles, too.
Mainline boasts one of the UK’s largest fleets of electric and hybrid powered access machines. If you would like more information on 12m electric articulated boom lift hire, please get in touch. All of our machines are serviced and maintained by our time-served CAP trained engineers and are available for delivery nationwide. Please contact our sales team for information on availability.
