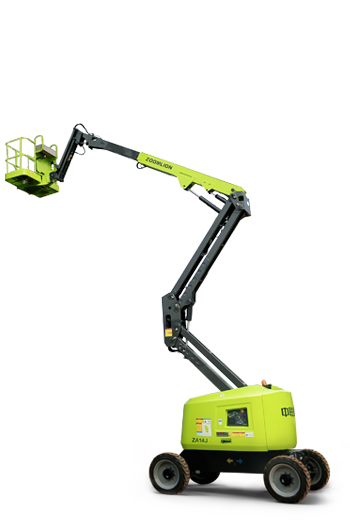

Zoomlion ZA14J | 15.8m Articulated Boom Lift

The Zoomlion ZA14J is designed for versatile access in demanding outdoor environments. Its articulated boom offers a smooth “up-and-over” clearance of 7.55 m, enabling operators to work efficiently over obstacles. A combination of 355° non-continuous turntable rotation, 160° platform rotation, and dual-parallel boom articulation ensures precise cage positioning with minimal need to reposition the base machine.

With a working height of 15.80 m, a horizontal outreach of 8.30 m, and a robust 300 kg platform capacity, the ZA14J is well-suited for high-reach tasks requiring both people and tools. Standard features such as load-sensing technology, automatic platform leveling, and an oscillating axle provide stability and safety on uneven ground.

The ZA14J is an ideal choice for cladding, steel erection, façade maintenance, and installation projects where both reach and manoeuvrability are essential.

Interested in hiring this product?

Mainline Hire

4.8

Based on 55 Google Reviews

Specifications

Download Data sheet
Max Working Height

15.92m

Max Platform Height

13.92m

Outreach

7.65m

Overall Width

1.83m

Stowed Length

6.83m

Stowed Height

2m

Platform Capacity

227kg

Gross Machine Weight

7620kg

Stowed Gradeability

30%

Specifications may be subject to change – clarification should be sought at point of hire.

Zoomlion ZA14J | 15.8m Articulated Boom Lift

The Zoomlion ZA14J is designed for versatile access in demanding outdoor environments. Its articulated boom offers a smooth “up-and-over” clearance of 7.55 m, enabling operators to work efficiently over obstacles. A combination of 355° non-continuous turntable rotation, 160° platform rotation, and dual-parallel boom articulation ensures precise cage positioning with minimal need to reposition the base machine.

With a working height of 15.80 m, a horizontal outreach of 8.30 m, and a robust 300 kg platform capacity, the ZA14J is well-suited for high-reach tasks requiring both people and tools. Standard features such as load-sensing technology, automatic platform leveling, and an oscillating axle provide stability and safety on uneven ground.

The ZA14J is an ideal choice for cladding, steel erection, façade maintenance, and installation projects where both reach and manoeuvrability are essential.

Interested in hiring this product?

Mainline Hire

4.8

Based on 55 Google Reviews

Great company to use, friendly service and have answers to any questions you have regarding Read More

richard dove

4 weeks ago

Mainline have helped us out at short notice a number of times. Their machines are Read More

Claire Cook

2 weeks ago

Excellent service as always from Mainline group, very responsive to request for plant hire. Have Read More

Andy West

2 weeks ago

Cotton Transport have used Mainline on numerous occasions for the hire of cherry pickers and Read More

Helen Townsend

a week ago

We have been using Mainline as our primary plant hire supplier since 2017 and they have Read More

Ben Tapper

2 weeks ago

I have had consistently positive experiences working with Mainline Group over numerous projects during the Read More

Adam Trigger

2 weeks ago

Been using these guys for years, great company and cant reccomend highly enough! Always on Read More

Kerin Bell

a week ago

Hannah from Mainline is amazing. Very supportive and will always help you get the job Read More

Tyrone ottey

a week ago

I had a terrifying experience with an HGV driver working for this company. The driver Read More

Tom Perkins

a week ago

Brilliant plant tools and access company

Dean Hammond

8 years ago

Brilliant company, great team.

Tom Winter

7 years ago

Always a fab company to deal with ! Always there to help and accommodate when needed Read More

Deanna Savin

4 years ago

Worst service experienced by a company. The machine which I hired did not arrive on Read More

beth Byrne

8 years ago

Was walking my dog alongside one of Mainline's flatbeds when a strap with metal loop Read More

Adam Marshall

a year ago

Ready to hire the Zoomlion ZA14J | 15.8m Articulated Boom Lift?

Get a fast quote or check live availability today — our expert team is on hand to match the right machine to your project.

featured image

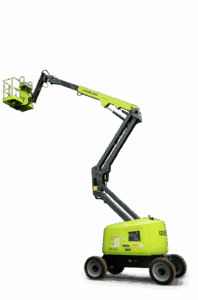

Zoomlion ZA14J | 15.8m Articulated Boom Lift
