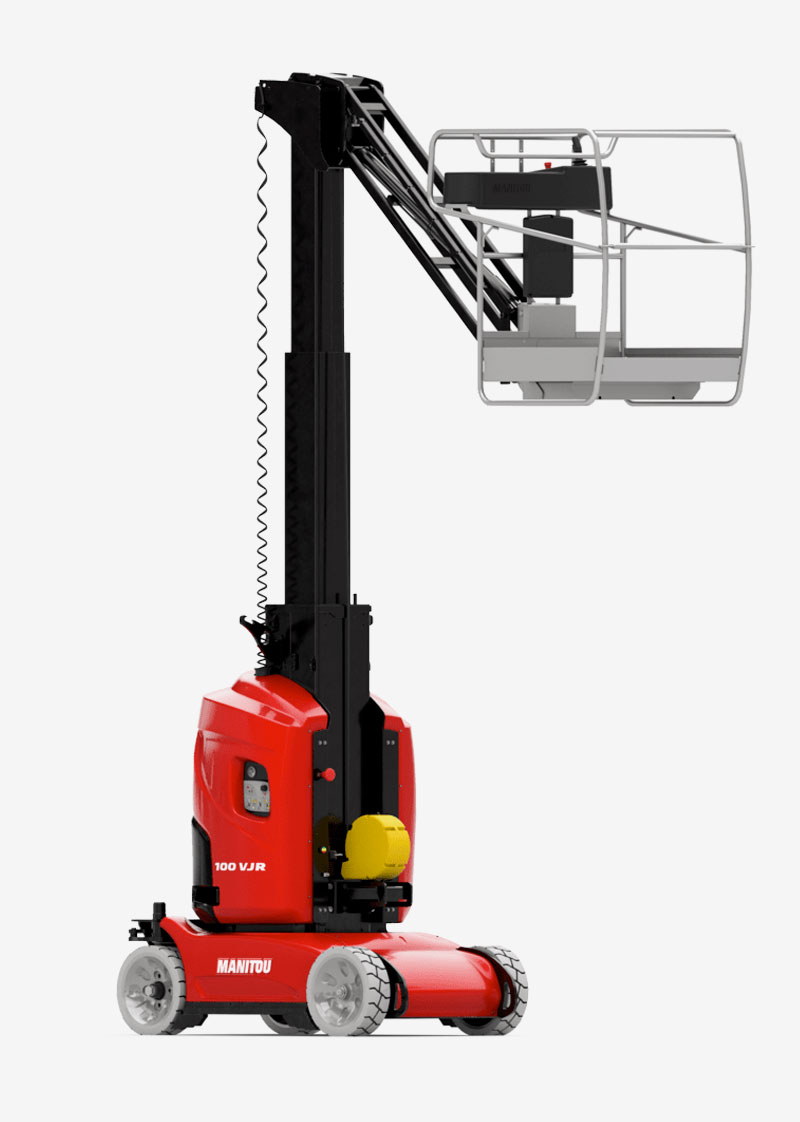

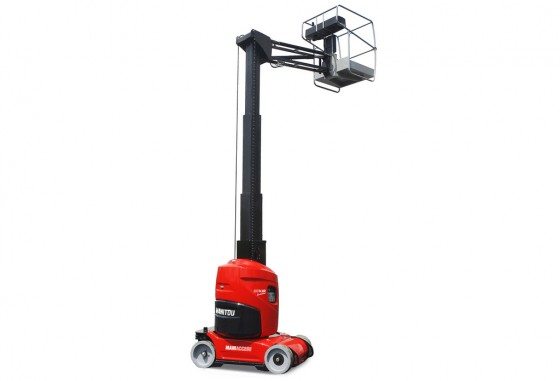

Manitou 100VJR

The Manitou 100 VJR is a vertical platform with a capacity of 227kg and a working height of up to 9.9m. It’s an excellent choice for maintenance projects inside or outside on stable ground. It’s compact dimensions allow it to pass easily through doors and narrow spaces.

The pendular arm which enables rotation of more or less 70⁰ and the turret which can rotate around 350⁰ make it one of the stars of the market. Operators appreciate its comfort, flexibility and its horizontal outreach of more than 3 metres


Manitou 100VJR
Max Working Height9.9m
Max Platform Height7.9m
Overall Width0.99m
Stowed Length2.82m
Stowed Height1.99m
Platform Capacity200kg
Gross Machine Weight2650kg
Stowed Gradeability25%

Specifications may be subject to change – clarification should be sought at point of hire

Product Features
› Proportional switches/levers› Sound and visual alarm in case of excessive slant and overload
› Emergency manual descent› Sound warning system inside the platform
› Indication of state of charge of batteries› Integrated diagnostic aid
› Basket with transparent floor› Forward movement possible at maximum height
› Integrated charger› Negative braking system
› Hour-meter› Hooks for sling loading/lifting
› Tyres with non-marking edges› Tool box inside platform
