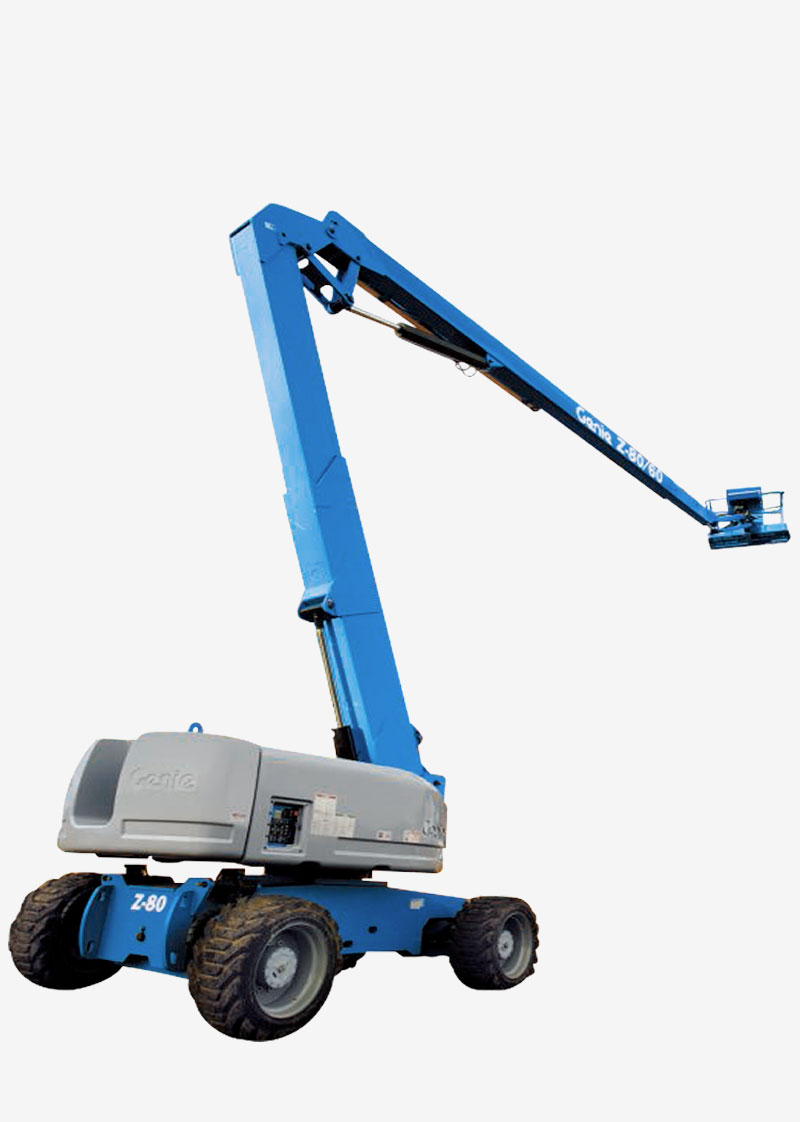

This hardy, articulated boom lift is ideal for outdoor construction work and is popular for use in industrial settings. The Genie Z-80/60 offers an admirable working envelope with exceptional 18.29m outreach capacity and 8.83m up-and-over clearance. This 25.77m articulated boom lift also includes a number of great features that improve operator safety and comfort such as a self-levelling basket and excess load weight detection.
| Genie Z80/60 | |
|---|---|
| Max Working Height | 25.77m |
| Max Platform Height | 23.77m |
| Outreach | 18.29m |
| Overall Width | 2.49m |
| Stowed Length | 11.27m |
| Stowed Height | 3m |
| Platform Capacity | 227kg |
| Gross Machine Weight | 17010kg |
| Stowed Gradeability | 50% |
Specifications may be subject to change – clarification should be sought at point of hire
| Product Features | |
|---|---|
| › Horn | › Hour-meter |
| › Flashing beacon | › Certified load sensor |
| › On-board diagnostics | › Two speed wheel motors |
| › Descent and travel alarms | › Hydraulic platform rotation |
| › 1.83m Jib with 135 degree range | › Fully proportional Hall effect controls |
| › Configurable controls to limit lift height to 70ft | › Tilt alarm |
| › Drive enable | › Hydraulic oil cooler |
| › Self levelling platform | › Thumb rocker steering |
| › Locking turntable covers | › AC power cord to platform |
| › Full-time positive traction drive | › ALC 1000 Electronic control system |
| › 360 Degree continuous turntable rotation | › Four steering models: front, rear, crab and coordinated |
As one of the UK’s leading powered access hire companies, Mainline boasts one of the country’s largest and most comprehensive fleets of access equipment. Amongst our impressive fleet of high-reach outdoor access solutions, we offer 25.77m diesel articulated boom hire with the Genie Z-80/60.
This hardy, articulated boom lift is ideal for outdoor construction work and is popular for use in industrial settings. The Genie Z-80/60 offers an admirable working envelope with exceptional 18.29m outreach capacity and 8.83m up-and-over clearance. This 25.77m articulated boom lift also includes a number of great features that improve operator safety and comfort such as a self-levelling basket and excess load weight detection.
This versatile, all-terrain machine incorporates the Genie® Fast Mast™ system, which allows the operator to lower the platform to the ground without having to lower the secondary boom, raising primary and secondary booms simultaneously.
This machine’s 360⁰ turntable rotation and 160⁰ degree platform rotation facilitates machine positioning for working alongside walls, making the Genie Z80/60 a great choice for cladding and glazing projects.
Four-wheel drive and 30% gradeability allow this 25.77m diesel articulated boom lift to easily navigate rugged construction site terrain, suiting it to outdoor warehouse builds and large-scale construction projects.
Mainline Hire operates an aggressive fleet replenishment policy and our ample fleet includes a number of highly specialised machines suitable for all types of settings. Our articulated boom hire services include a great variety of models suitable for use on outdoor sites, in low-emission areas, and for mixed sites. Our sales teams and account managers have extensive experience in the planning and execution of complex construction projects and can advise you on the most suitable machines for your projects. All of our machines are regularly serviced and maintained by our team of CAP-trained engineers and we operate a fast response service in the event of any technical difficulties being experienced onsite with any of our machines. If you would like more information on Genie Z60/80 diesel articulated boom lift hire or any of our machines, please get in touch with Mainline on 01283 222 044. Our friendly team is always happy to assist with your enquiries.
