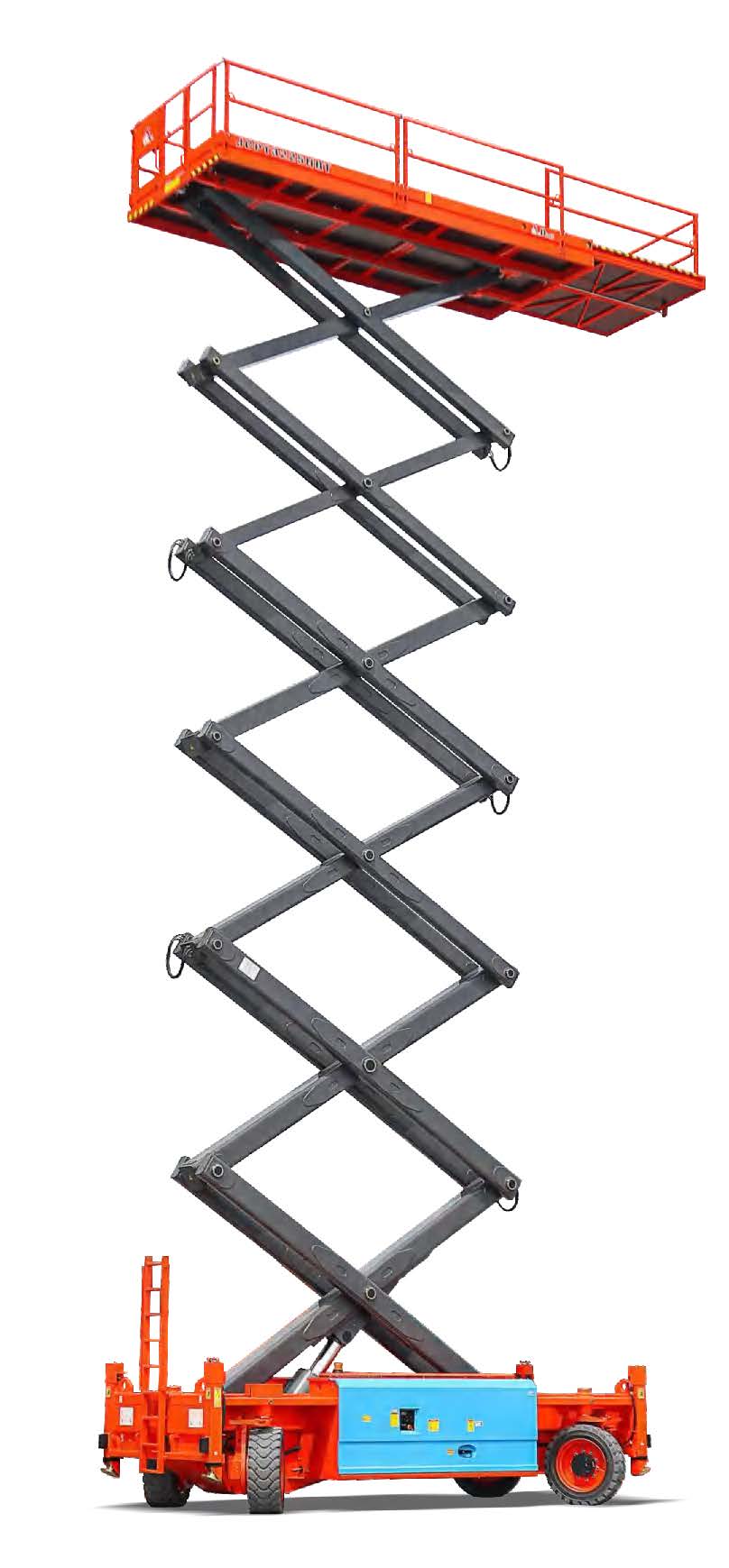

The Dingli JCPT3225HRT is a high-performance hybrid rough terrain scissor lift with a maximum working height of 32 meters. It combines electric and diesel power for enhanced energy efficiency and flexibility, ideal for both indoor and outdoor use. With a spacious platform (6.20 × 2.45 meters) and a safe working load of 1000 kg, it supports up to 4 occupants and heavy tools. Features include four-wheel drive and steering, automatic hydraulic outriggers, drivability at full height, and a self-weight lowering system. Its hybrid powertrain includes a Kubota diesel engine and 80V lithium battery system, making it suitable for low-emission zones and rugged terrain alike.
| Dingli 3225RTH | |
|---|---|
| Max Working Height | 32m |
| Max Platform Height | 30m |
| Overall Width | 2.55m |
| Overall Length | 6.73m |
| Stowed Height | 3.19m |
| Platform Capacity | 1000kg |
| Gross Machine Weight | 23400kg |
| Stowed Gradeability | 40% |
Specifications may be subject to change – clarification should be sought at point of hire
| Product Features | |
|---|---|
| › Drives at full height | › Self-lock Gate On Platform |
| › Four-Wheel Drive | › Four-Wheel Steering |
| › 32m working height | › Automatic Brake System |
| › Self-Weight Lowering System | |
The Dingli JCPT3225HRT is a high-performance hybrid rough terrain scissor lift with a maximum working height of 32 meters. It combines electric and diesel power for enhanced energy efficiency and flexibility, ideal for both indoor and outdoor use. With a spacious platform (6.20 × 2.45 meters) and a safe working load of 1000 kg, it supports up to 4 occupants and heavy tools. Features include four-wheel drive and steering, automatic hydraulic outriggers, drivability at full height, and a self-weight lowering system. Its hybrid powertrain includes a Kubota diesel engine and 80V lithium battery system, making it suitable for low-emission zones and rugged terrain alike.
