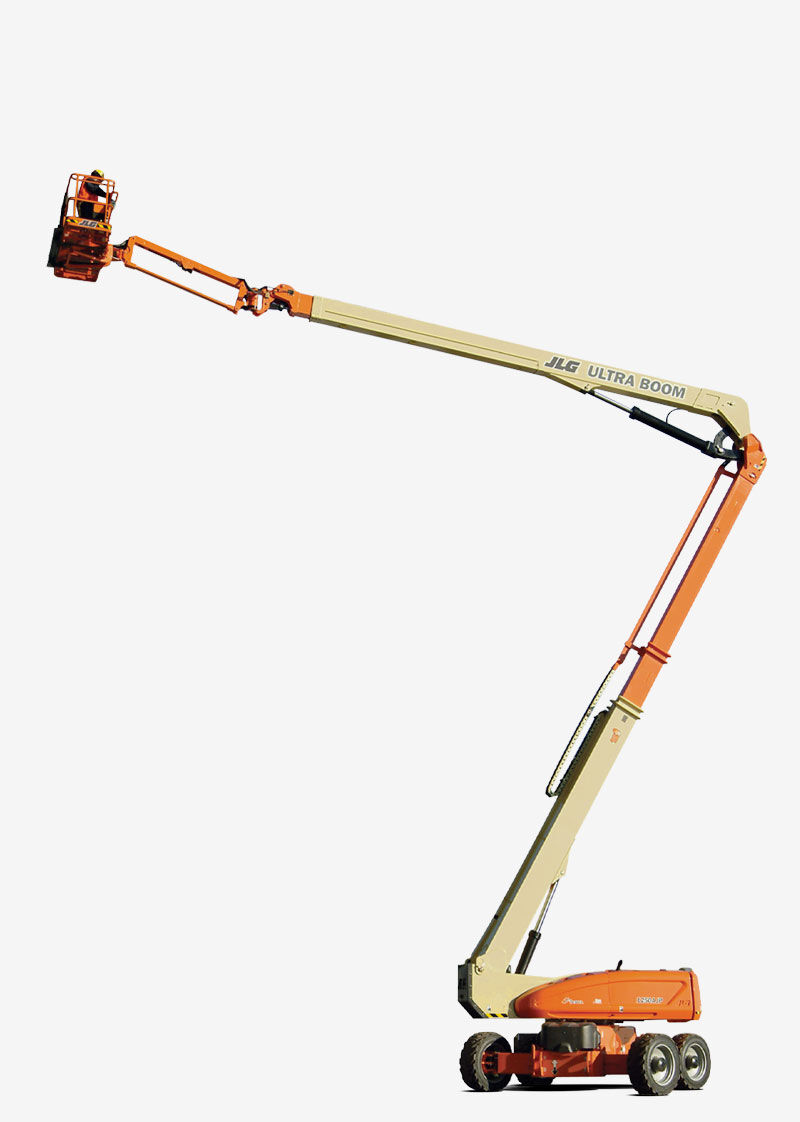

For jobs that demand both height and reach, the JLG 1250AJP provides one of the most impressive working envelopes on the market. With over 40.3 m working height and 19.3 m of outreach, the JLG 1250AJP articulated boom lift is ideal for applications that require high-reach versatility. The cage boasts a 450 kg platform capacity and is equipped for seamless operation with full proportional drive joystick control and an integral thumb steer switch.
| JLG 1250 AJP | |
|---|---|
| Max Working Height | 40.3m |
| Max Platform Height | 38.3m |
| Stowed Length | 11.46m |
| Stowed Height | 3.05m |
| Platform Capacity | 450kg |
| Gross Machine Weight | 21000kg |
| Stowed Gradeability | 45% |
Specifications may be subject to change – clarification should be sought at point of hire
| Product Features | |
|---|---|
| › Hour-metre | › Load sensing system |
| › Oscillating front axle | › Drive-out extending axles |
| › AC power cable to platform | › 5⁰ tilt alarm and indicator light |
| › Platform console machine status light panel | › Full proportional main boom and swing joystick control |
| › JibPLUS® with 4 way axis jib including 125⁰ horizontal motion | › Variable speed dial control for telescope, platform rotate and tower |
| › Platform tool tray | › 2.44m articulating jib |
| › Four-wheel drive (4WD) | › Foam filled lug tread tyres |
| › Multiple function operation | › QuikStik® boom design feature |
| › Ground control selector switch with key lock | › Selectable dual platform capacity system (230kg/450kg) |
| › 3 steering modes (Four-wheel steer, two wheel steer, crab steer) | › Full proportional drive joystick control with integral thumb steer switch |
JLG 1250AJP LIFT HIRE AVAILABLE WITH MAINLINE!
Mainline Hire is a leading national access hire provider for intricate and complex high-level building projects. As such, we boast some of the most experienced account managers in the industry as well as a fleet of highly specialised equipment. Our services include 40m diesel articulated boom lift hire with the spectacular JLG 1250 AJP.
For jobs that demand both height and reach, the JLG 1250AJP provides one of the most impressive working envelopes on the market. With over 40.3 m working height and 19.3 m of outreach, the JLG 1250AJP articulated boom lift is ideal for applications that require high-reach versatility. The cage boasts a 450 kg platform capacity and is equipped for seamless operation with full proportional drive joystick control and an integral thumb steer switch.
Full proportional main boom and swing joystick control together with automatic platform levelling ensures operator comfort at any height. JLG’s exclusive QuikStik® boom design also delivers faster cycle speeds – 115 seconds from ground to elevation, allowing work to be carried out quickly and efficiently. Also designed with rugged terrain in mind, JLG Ultra Series boom lifts come with the only oscillating axle in their boom class, giving you surprising mobility in an ultra-sized package.
The JLG 1250AJP articulating boom lift incorporates ‘Drive-out’ extending axles and features three different steering modes: four-wheel steering, two-wheel steering, and crab steering.

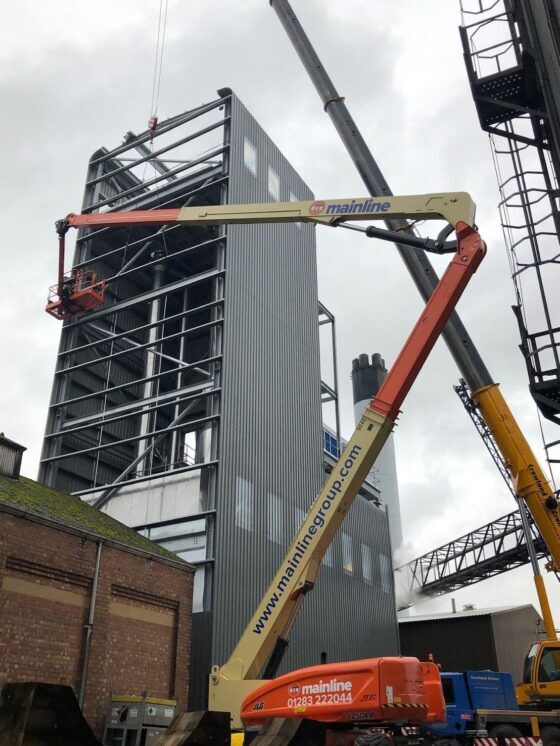

This high-reach machine has been specifically designed with high-build projects in mind. The JLG 1250 AJP proves a perfect machine for working on large warehouse builds, high-level glazing, curtain walling and cladding projects, maintenance of silos, and a variety of other similarly challenging work at height tasks.
For more information on 40m diesel articulated boom hire or to speak to an expert regarding the execution of challenging high-reach projects, please get in touch with us. Mainline Hire is a leading national provider of access platforms and machines for complex projects including demolition and maintenance projects, high-level builds, and associated work at height, with a wide and varied fleet of specifically suited machines for hire.
If you would like to discuss JLG 1250 AJP articulating boom lift hire for your next project, or you would like to speak to an experienced adviser for an expert technical assessment, please get in touch with Mainline on 01283 222 044 where you will find our team are always delighted to help!
